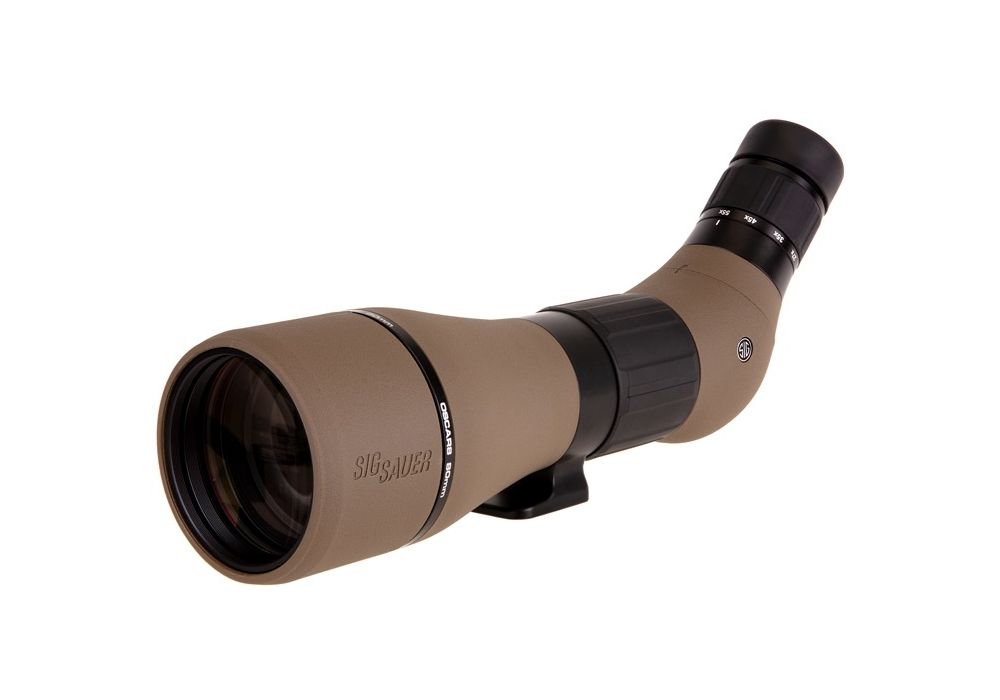

The OSCAR8™ is a premium, angled eyepiece 27–55x80 mm spotting scope. Featuring SIG SAUER’s industry-leading HDX™ optical design combining extra-low dispersion glass with high light transmittance glass, SCHMIDT-PECHAN prism and fully multi-coated lenses to provide unmatched resolution, image contrast, color clarity, and image brightness. The spotting scope features a fast focus adjustment along with an ergonomically designed, durable, non-slip rubber armor to protect the OSCAR8 in any environment.
FEATURES:
- HDX Advanced optical system comprising both High Definition (HD) and High Transmittance (HT) glass for ultra-high resolution, optical performance, and light transmission
- SCHMIDT-PECHAN prism, combined with HD glass, provide unmatched chromatic and spherical aberration correction for clear, vibrant images
- Spectracoat™highly efficient, ultra-wide broadband, anti-reflection lens coatings reduce surface reflections to extremely low levels across the entire visible spectrum providing superior light transmission
- Angled eyepiece, combined with rotating tripod collar, provides the user with multiple viewing angles, to accommodate setup and usage in any terrain
- Comes equipped with a variable power eyepiece. This eyepiece can be locked into place or removed.
- Waterproof and fog proof, the OSCAR8 will provide unmatched performance in all environmental conditions
- Adjustable eyecups allow the user to optimize eye relief for use with or without glasses
- Lightweight and robust aircraft grade aluminum housing, combined with rubberized non-slip grip armor, ensures a lifetime of use in the worst conditions
- Custom SIG SAUER fitted neoprene cover included
- Covered by SIG SAUER’s INFINITE Guarantee™ and Electronics Limited Warranty, see website for full details.
- Intergrated Arca-Swiss Base with ¼”-20 Threads for Universal Mounting
- Assembled in USA
Specifications
| SKU | SOO82001 |
|---|---|
| Model | OSCAR8 |
| Color | FDE |
| Magnification | 27-55x |
| Objective Lens Diameter | 80 mm |
| Overall Length - X.XX in [XX mm] | 15.27 (in) |
| Weight - XX oz [XX g] | 67.2 (oz) |
| Battery | N/A |
| Prism Type | Schmidt-Pechan |
| Carry Case Included | No |
| Carry Case | N/A |
| Frame Material | Magnesium |
| Grip Material | Rubber Armor |
| BDX Enabled | No |
| HDX Glass | Yes |
| Image Stabilization | No |
| Eye Relief | 16-17 |
| Focal Plane | Second |
| Field of View | 1.4 - 2.0 |
| Near Focus (M) | 5m |
| New Coating Type | SpectraCoat, Lens Armor, HDX |
| Tripod Mount | ARCA-SWISS |
| Waterproof | Yes |
| Waterproof Rating | IPX7 |
| Warranty | SIG SAUER Electro-Optic Infinite Guarantee |
| Application | Long Range Distance |
Infinite Guarantee
SIG SAUER Electro-Optics are guaranteed forever. It's an unlimited lifetime guarantee.
HDX™
Advanced optical systems comprising both High Definition (ED) and High Transmittance (HT) glass for ultra-high resolution, optical performance and light transmission.
LensArmor™
Abrasion-resistant lens coatings for extreme durability ensure the lenses on your scope will stay sharp, bright, and clear.
SpectraCoat™
Highly efficient, ultra-wide broadband, anti-reflection lens coatings reduce surface reflections to extremely low levels across the entire visible spectrum providing superior light transmission.
Stealth ID™
Electro-Optics industrial design inspired by our legendary firearms; deflection armor trapezoidal surfacing breaks up the shape and visibility of the optic along with pistol slide serrations and grip checkering to add function to the form of all SIG SAUER electro-optics.- OSCAR8 SPOTTING SCOPE OWNER'S MANUAL
