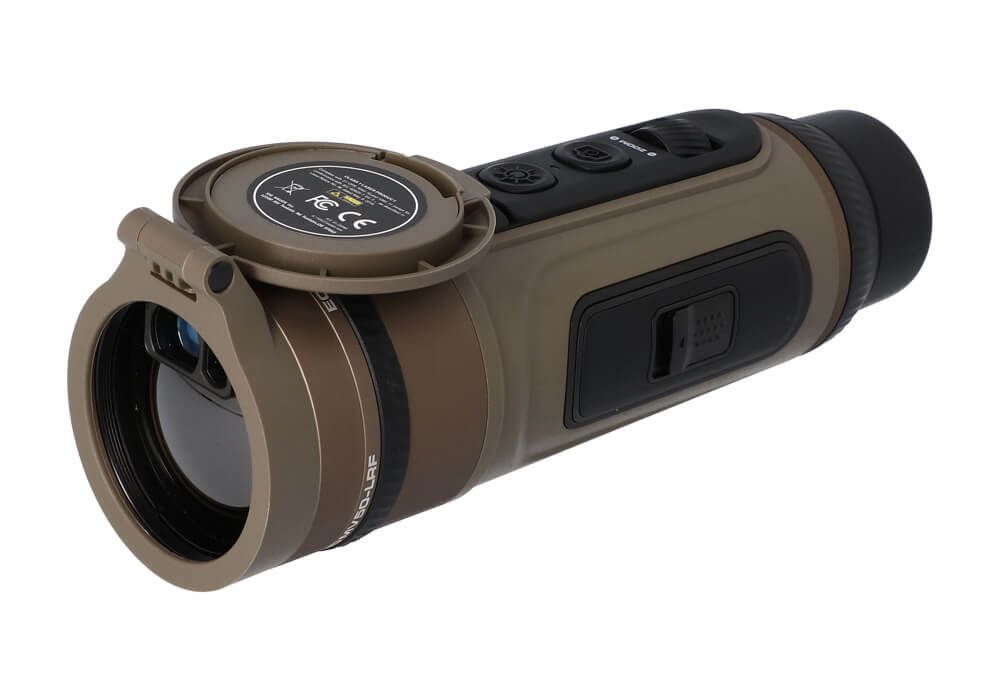

Leveraging years of experience creating the industry’s most innovative and rugged technologies, SIG SAUER’s new ECHO MV50-LRF is a compact thermal monocular packed with industry-leading features and fully backed by SIG SAUER’s unrivaled Infinite Guarantee™.
The ECHO MV50-LRF is powered by an LWIR 640x512 VGA, 12um 50Hz thermal core with <20mK sensitivity that allows you to identify targets in total darkness with 8 selectable color palettes. Compatible with SIG SAUER’s BDX 2.0 Mobile App, the ECHO MV50-LRF can capture both photo and video that can be viewed or shared in real-time via BDX 2.0.

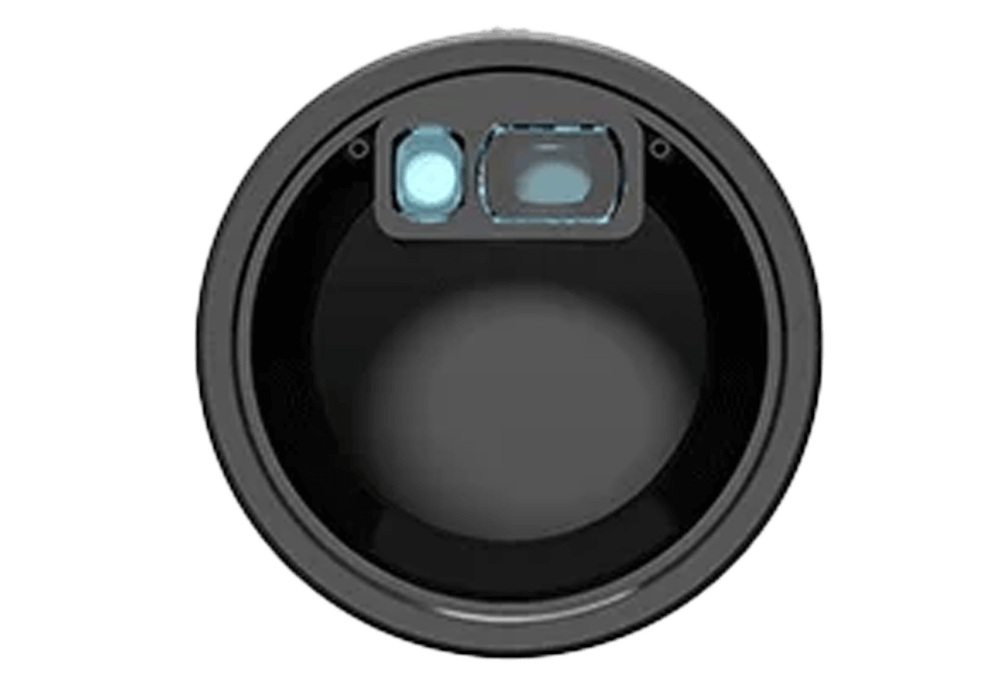

With an integrated 1000-y laser rangefinder, the ECHO MV50-LRF can deliver custom ballistic solutions driven by Applied Ballistics® Ultralight. When paired with a compatible ECHO optic, the MV50-LRF communicates immediate holdover solutions through the disturbed reticle of your optic.
Boasting one of the longest runtimes in the industry, the ECHO MV50-LRF is capable of drawing power from an internal reserve cell, in addition to a removable 18500 lithium-ion battery. The device ships with (2) 18500 batteries to ensure that you have all the power you need for long nights afield.
Defy The Dark with the ECHO MV50-LRF, an unrivaled force in thermal imaging.
FEATURES:
- Integrated 1000y Laser Rangefinder and Applied Ballistics® Ultralight
- 3-24x Digital Zoom
- LWIR 640x512 VGA 12um 50Hz Thermal Core with <20mK sensitivity
- Fully Backed by SIG SAUER’s Infinite Guarantee™
- 8 Selectable Color Palettes
- Record Photo and Video (With Audio)
- BDX 2.0 Connectivity
- Compatible with BDX™-Capable Thermal Optics
- 10-Hour Runtime
- Includes (2) 18500 Rechargeable Lithium-Ion Batteries
Specifications
| SKU | SOEC42310 |
|---|---|
| Magnification | 3-24 |
| Field of View | 8.7 |
| Frame Rate | 50 Hz |
| Resolution | 640 X 512 |
| Color Palettes | 8 |
| Video Recording | Yes |
| BDX Enabled | Yes |
| Run Time | 10 HOURS |
| Battery | Internal and 18500 Replaceable External |
| Overall Length - X.XX in [XX mm] | 7.6 in |
| Waterproofing | IP67 |
| Color | FDE |
Infinite Guarantee
SIG SAUER Electro-Optics are guaranteed forever. It's an unlimited lifetime guarantee.
LensArmor™
Abrasion-resistant lens coatings for extreme durability ensure the lenses on your scope will stay sharp, bright, and clear.
LightWave DSP™
Lightwave DSP (Digital Signal Processing) engine leverages HyperScan– an advanced power management technique that provides the fastest refresh rate in scan mode (4 times per second) even at distances over a mile. Our DSP engine uses the latest generation Field Programmable Gate Array (FPGA) running sophisticated signal processing algorithms to reduce false positives while finding weak or distant targets.
Ballistic Data Exchange 2.0
Ballistic Data Exchange is a rangefinder and riflescope system that uses your ballistics, environmental conditions and Bluetooth to illuminate the exact holdover dot. BDX 2.0 is the Software Update that includes a new easy mode for quick BDX setup out of the box, including: BDX kits come paired and bonded. BDX Quickbond™ system gives users the ability to bond two BDX enabled devices without the smartphone app. BDX equipped KILO™ rangefinders preloaded with ballistic groups for centerfire rifles, muzzleloaders and crossbows. 100% compatible with BDX smartphone app to access the advanced BDX features in configuration options.
Hyperscan™
Features the fastest, most accurate range acquisition algorithms by analyzing targets 4 times per second and displaying the results on stationary or moving targets within a quarter of a second.
Bluetooth
Establish a wireless connection between your compatible SIG SAUER optic device and smartphones or Kestrels to maximize the functionality and capabilities of your optic. Manipulate device setting, load new ballistic profiles, and transfer data quickly and easily with the BDX 2.0 mobile app
Applied Ballistics
